Welded Steel Bar Grating Galvanized Or Painted For Fire Tryck Platforms
High quality hot dipped galvanized steel grating mesh can customized
Product details
Material:Low cardon steel,mild steel,stainless steel
Surface treatment:Hot dipped galvanized,painting
Size:3'*20',3'*24',3'*30',1000mm*1000mm,1000mm*5800mm,1000mm*6000mm.
Application:Industrial platform,flooring and walkway,traffic,steel structure.
Packing details:pallets in containers by steek straps other worthy export packing,or according to your packing requirements.
Steel grating is flat steel bar according to a certain distance and cross arranged and welded into the middle of a square lattice with an iron and steel products ,steel grating generally use carbon steel production,appearance of hot dip galvanized,can serve to prevent the role of oxidation,can also be made of stainless steel .
Welded Steel Bar Grating is made by Carbon or mild steel of certain sizes through the processing of grooving, lock-pressure, welding, finishing and other treatment.Welded Steel Bar Grating can be actually made from copper, aluminum and other materials, while gWelded Steel Bar Grating is the mostly used one due to its economic cost and good property.
Welded Steel Bar GratingApplication:
Welded Steel Bar Grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
Welded Steel Bar Grating Features:
Aesthetic outlook: Simple lines and silver appearance meeting the modern trend.
The best drainage: Leakage area of 83.3 percent, more than twice of cast iron products.
Hot-DIP galvanized treatment: Good rust-proof property, maintenance-free replacement.
Anti-theft design: The cover and the frame is joint with hinge offering security, safety and open convenience.
Savings investments: Large-span. Less lost for heavy load compared with cast iron products. Cost can be saved for the risk of being stolen or crushing one if cast iron is uses.
High strength: The strength and the toughness are much higher than cast iron. Can be used for terminals, airport and other large-span and heavy loading condition.
Specifications: More specifications and sizes optional for meeting various environment, load, span, sizes and shapes.
Welded Steel Bar Grating Specification:
| No. | Item | Detailed Description |
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc |
| 2 | Bearing Pitch | 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc |
| US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc |
| 3 | Cross Bar Pitch | 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc |
| 4 | Steel Grade | ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Grating Standard | China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), |
| UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS |
Standard for Steel Grate
A) China: YT/T4001.1-2007
B) U.S.A.: ANSI/NAAMM (MBG531-93)
C) U.K.: BS4592-1:1995
D) Australia: AS1657-1992
E) Japan: JJS
General information of steel grating
Bearing bar - A flat bar withstanding the main load is in consistent with the span direction .
bearing bar pitch - the distance center to center of the two bearing bars.
Cross bar - the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the bearing bars .
Cross bar pitch - the distance center to center of the two adjacent cross bars.
Length (span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in the same direction as the baering bars .
Width - the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.
Type of Steel Grating
Common spesification :
| Bearing bar pitch | Cross-bar Pitch | Specification of bearing bar (width×thickness) |
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
| 60 | 50 | G203/60/50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross-bar Pitch | Specification of bearing bar (width×thickness) |
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Steel grating Surface Treatment
1.Hot dipped galvanized :According to GB/T13912-92 standard :the average zinc thickness is more than 610g/m²(flat bar ≥5mm) and 460g/m²(flat bar <5mm)
2.Painting :According to the clients' requirement, choose japanning dipped coating
3.No surface treatment
Steel grating application
Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department stores, hospitals,amusement parks,etc
Packing&shipping
Packed in bundle then fixed by steel belt onto metal pallets as the general export package and customers' requirement is accepted .
Metal Grate Stair Treads Picture:
|
|

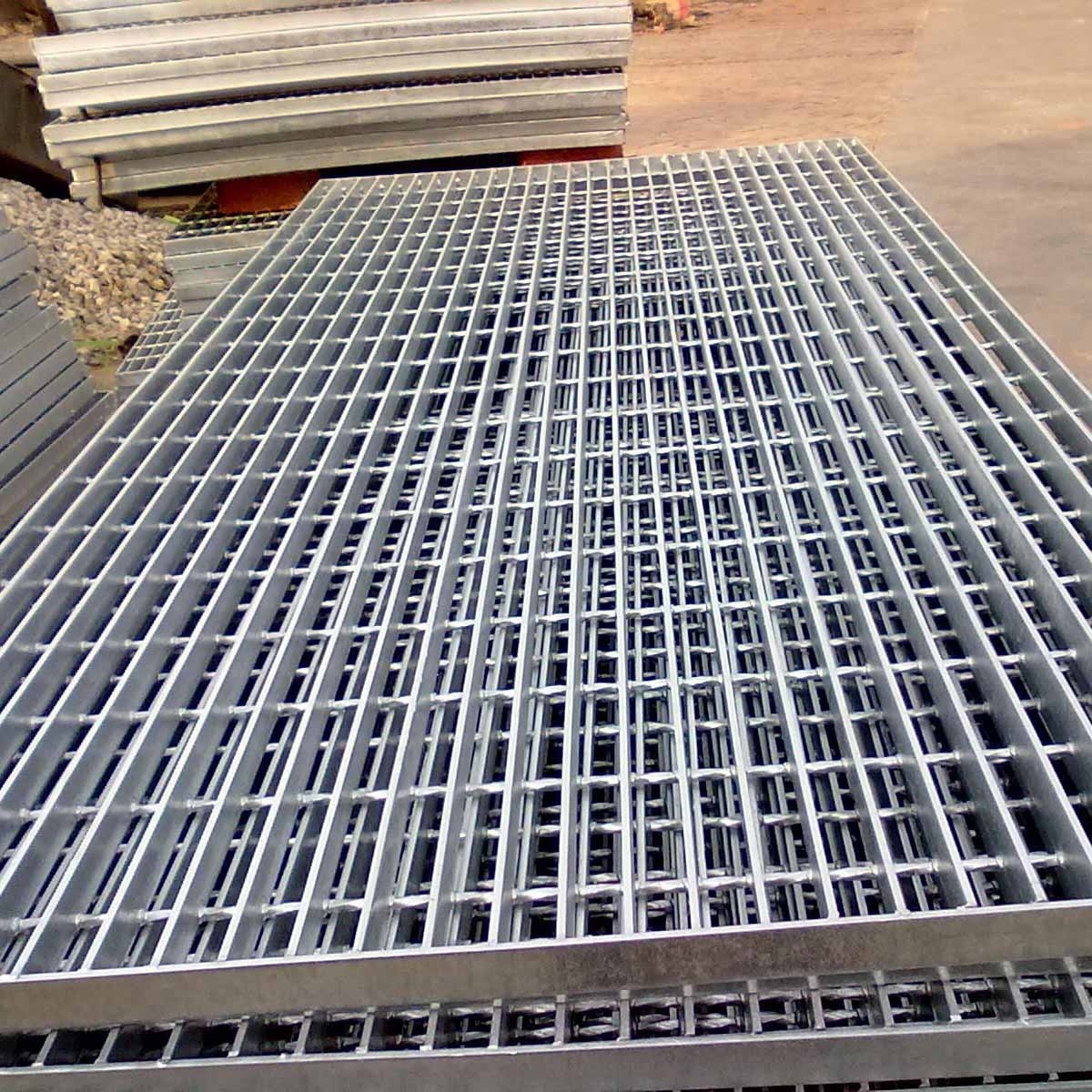

Galvanized Welded Steel Bar Grating Images
|
