double horizontal wire 868 security fence

Name: double horizontal wire 868 security fence
Brand: LNF-2d fencing panels
Price: 3.88 USD

China double horizontal wire 868 security fence wholesale

Brand Name : LNF-2d fencing panels

Model Number : 868 and 656 twin wire

Certification : ISO

Place of Origin : Europea Design China Made

MOQ : 500 liner meter

Price : 3.88$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 steel

Color : RAL 6005 or 9003 and so on

Treatment : Hot Dipped Glavanized

Mesh Opening : 50mm x 200mm ,55mm x 200mm

Diameter : 656 ,868

Type : Weld

Warranty : 5 -25 years depand on the treatment

Main Market : Europea ,Middle East ,USA ,AU etc

Accessoires : Clamp and Post Caps etc

Customized : Available

Feature : Rigidity

Application : Garden Fence, Farm Fence, Residential Fence, Highway Fence, Railway Fence, Balcony Fence, Airport Fence, Stadium Fence, Municipal Fence, Bridge Fence, Stair Fence, Air-Condition Fence, 868 Fence

Trade Mark : N/M

Sample : Free but pay freight cost

Contact Now

double horizontal wire 868 security fence

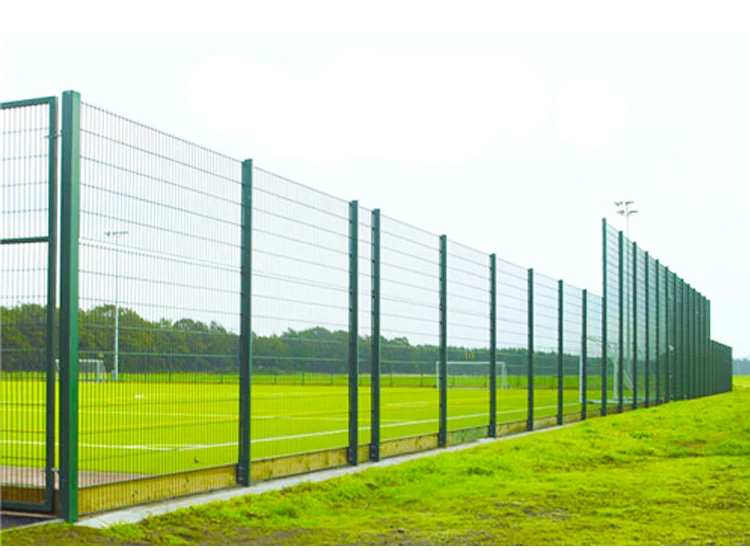

Double Wire Mesh Mesh is a rigid yet unobtrusive fencing system. It is often used as a perimeter fence for industrial or commercial premises and sport pitches where a strong mesh fencing system is required. It's also widely used for roads, freight yards, airports, sport fields and public districts.

Specification

Panel size Height*Width (mm)	Mesh size (mm)	Wire Diameter		Post Height (mm)
Panel size Height*Width (mm)	Mesh size (mm)	Wire diameter (mm)	Wire diameter (mm)	Post Height (mm)
630x2500	50x200	8x2+6	6x2+5	1100
830x2500				1300
1030x2500				1500
1230x2500				1700
1430x2500				1900
1630x2500				2100
1830x2500				2400
2030x2500				2600
2230x2500				2800
2430x2500				3000

Applications

It is widely used in industrial sites, playing fields, entertainment, schools and private house as security fencing system.

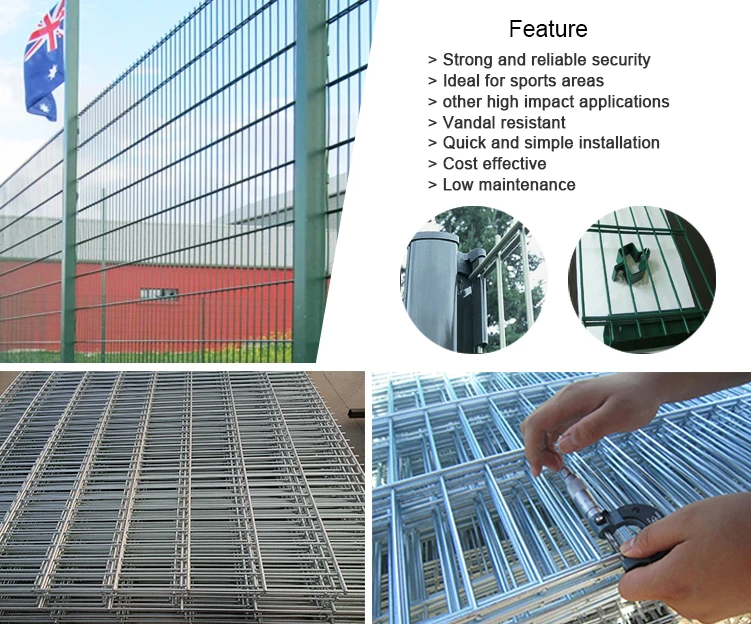

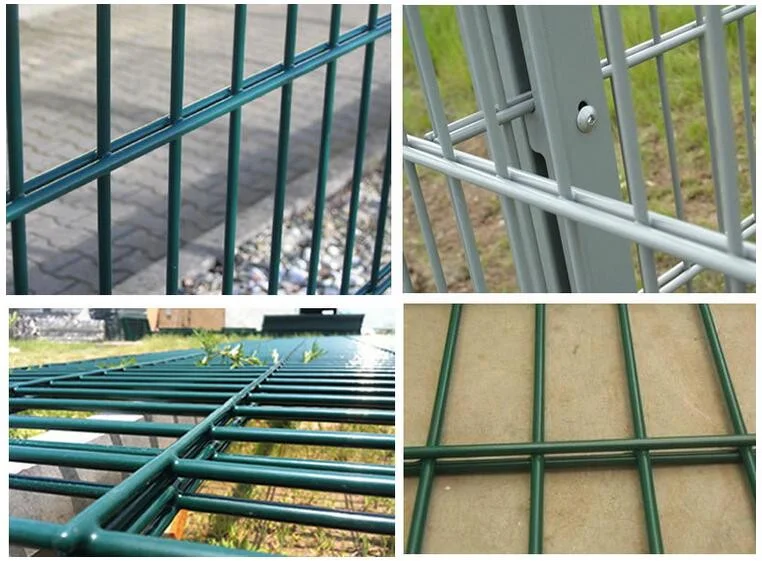

Detailed Image

Accessories

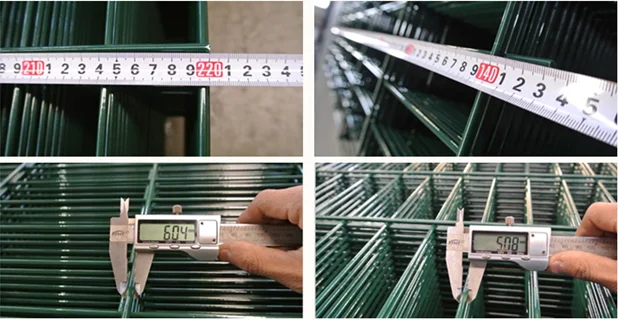

Quality Control

Packaging & Shipping

Fence Panel

1> There is a piece of plastic film(with small bubbles), The first panel can be prevented from damaging the metal pallet

2>Metal plate is fixed at each corner of the panels, which can keep the panels stay together and immovable.

3> The wood plate on the panels can prevent the last panel from being damaged by top pallet

Pole

the pole with a cap is covered by plastic film ,then packaged by metal pallet

Accessories :

Clips and Screw&nuts are filled into the plastic bag ,then put them into the carton box

Materials: mild steel wire, aluminium-magnesium alloy wire

Weaving and Features: it is made by weaving and welding.

fence panel specifications

High (cm)	wire gauge	wire diameter (mm)	Aperture (cm)	Fixed link	Long(2.5mm)
High (cm)	wire gauge	wire diameter (mm)	Aperture (cm)	Weight(kg) / Wrap	Weight(kg) / Piece
60	10#/8#	3.24	5×12	1.9	6.5
80	10#/8#	3.24	5×12	2.3	7.5
100	10#/8#	3.24	5×12	2.7	8.5
120	10#/8#	3.24	5×12	3.1	9
150	10#/8#	3.24	5×12	3.7	11
18	10#/8#	3.24	5×12	4.3	12.5
200	10#/8#	3.24	5×12	4.7	13.5

Applications: it is used as guard rails in the highway, railway, airport, residence, port, wharf, garden, feeding and cattle breeding, etc.Product Features: antisepticise, anti-aging, shine resistance, and weather-proof. The antisepticise types are galvanization, hot-dip coating, spraying plastics and dipping plastics.

Service

1 Any inquiry will be replied within 24 hours.

2.Professional manufacturer.

3.OEM/ODM is available:

1) Print logo in the products;

2) The size and specification can be produced and design according to your demand.

4.High quality, fashion designs, reasonable and competitive price, fast lead time.

5.After-sale service

1) All products will have been strictly quality check in the house before packing.

2) All products will be well packed before shipping.

3) All our products have 10 years of rot resistance.

6.Faster delivery:

Sample order in stock, and 15-20 days for bulk production.

7.Payment:

You can pay for the order via T/T, Western Union, MoneyGram, L/C etc.

Double wire mesh fence constructed by double horizontal wires and a vertical wire welded together.

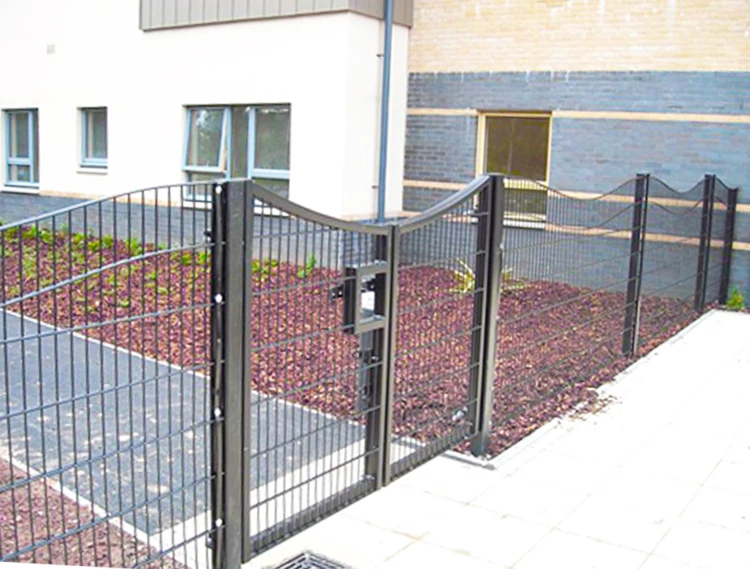

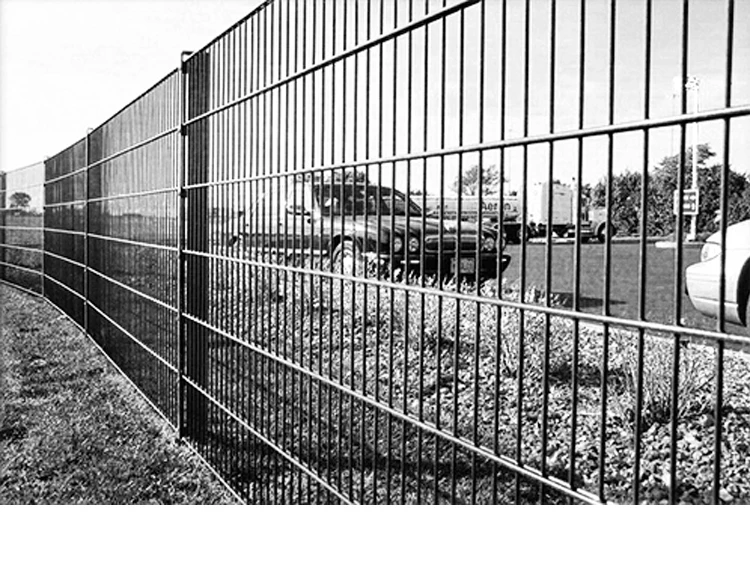

Product Application

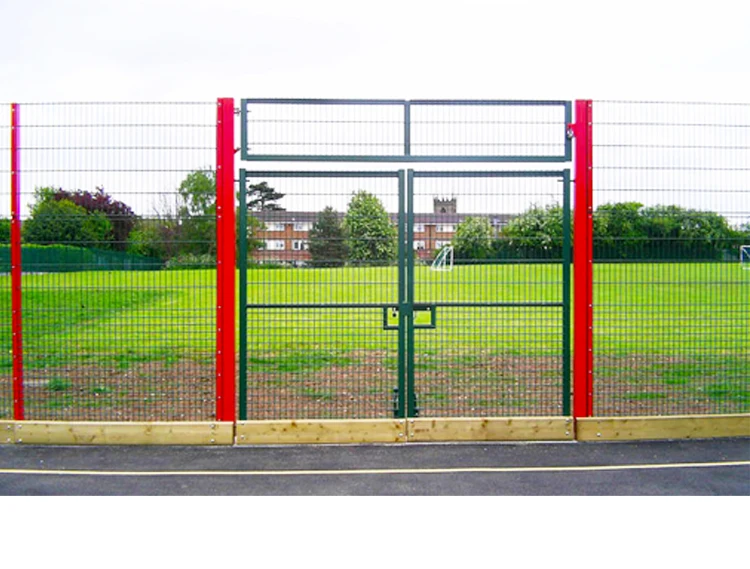

Play Ground

> Quick and simple installation > Cost effective > Low maintenance

Airport

> Strong and reliable security > Ideal for sports areas > other high impact applications > Vandal resistant

Prison

>Anti-climb >Anti-cut >High-strength

Municipal

>Anti-climb >Anti-cut >High-strength

Greening

> Vandal resistant > Quick and simple installation > Cost effective > Low maintenance
