358 fence

Name: 358 fence
Brand: LNF-Clear fence
Price: 16.66 USD

Brand Name : LNF-Clear fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 16.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Color : Dark Green,Black ,Yellow

Packing : Pallet

Feature : Anti Cut ,Climb ,High Desnsity

Type : Trellis & Gates

Finish : Hot Dipped Galvanized and Powder Coated

Panel Size : 2700mm x 4500mm

Contact Now

358 security fence is also called an anti-climb fence, which is the ultimate heavy-duty welded mesh panel providing the highest degree of security with excellent see-through visibility. 358 security fence has toe and finger proof profile. With a spacing specification of 75mm x 12.5mm, fingers and toes can't go through. Our 358 security fence is perfect as a guarded fence system because of its exclusive thickness anti-cutting materials, and its framework is robust, resistant and hard to uninstall. With our excellent anti-climb fence supply, clients can enjoy the most significant relaxation and secured protection from the inside of their own.

358 fence

358 fence Panel Features

High-Density weld configuration provides a finger-proof, anti-climb barrier.
High delay factor
Extremely difficult to cut using conventional wire cutters
Excellent through visibility, due to 4.00mm* wire diameter & rectangular mesh configuration
Compatible with most electronic alarm and detection systems
76.2mm x 12.7mm (3” x ½”) mesh aperture, wire centre to wire centre
Range of heights available from 1207mm to 5207mm
358 fence Weld strength is a minimum of 70% of wire strength before welding
The solidity of 36%

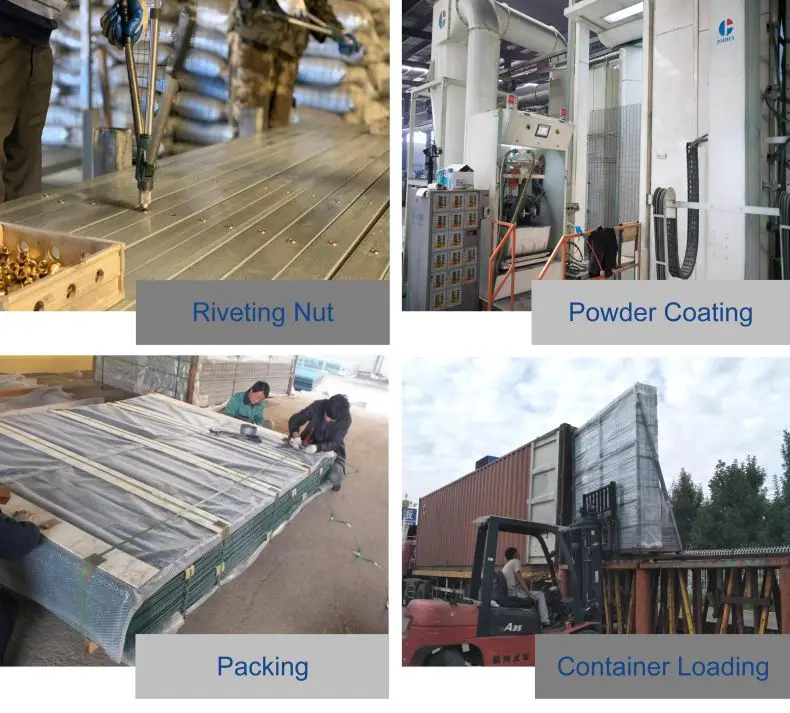

358 Fence Panels Packing

1>it has a rubber mat at the bottom of the pallet to avoid the pallet destroying the panels;

2>it has 4 metal corners to keep the pallet more strong;

3>it has a metal plate under the plastic bandage to reduce the pressure of fence panels;

4>it has a wooden plate at the top of the fence panel, protecting the fence panels from being crushed by other pallets.

Fence Post:

A cap covers each fence post (save your installing time and cost of labour), then with plastic film, then metal pallet.

Fence Accessories:

Clips and screws are packed by sets, plastic film, + carton boxes.

Specification

358 SECURITY FENCE SPECIFICATIONS
Fence Height (m)	Panel size (Height×Width)	Fence Post (Height ×Size × Thick )	Clamp Bar (Height ×Width × Thick )	Clamp No (PCS)
2.0	2007×2515mm	2700×60×60×2.5mm	2007×60×5.00mm	7 or 14
2.4	2400×2515mm	3100×60×60×2.5mm	2400×60×5.00mm	9 or 18
3.0	2997×2515mm	3800×80×80×2.5mm	2997×80×6.00mm	11 or 22
3.3	3302×2515mm	4200×80×80×2.5mm	3302×80×6.00mm	12 or 24
3.6	3607×2515mm	4500×100×60×3.0mm	3607×100×7.00mm	13 or 26
3.6	3607×2515mm	4500×100×100×3.0mm	3607×100×7.00mm	13 or 26
4.2	4204×2515mm	5200×100×100× 4.0mm	4204×100× 8.00mm	15 or 30
4.5	4496×2515mm	5500×100×100× 5.0mm	4496×100×8.00mm	16 or 32
5.2	5207×2515mm	6200×120×120×5.0mm	5207×100×8.00mm	18 or 36

358 fence Panel Finish Options

Standard Galvanised wire finish (typically 80-100g/m² of Zincprior to Welding / fabrication)
358 fence made of Galfan wire finish (typically 275-300g/m2 of Zn/Al alloy before Welding / fabrication)
All 358 fence panels can be offered with triple coat anti-corrosion architectural finish consisting of Galvanised / Galfan wire + ZincPhosphate pre-treatment + 100-micron Polyester coating to give long-lasting protection against the elements.
