358 mesh

Name: 358 mesh
Brand: LNF-Clear fence
Price: 16.66 USD

Brand Name : LNF-Clear fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 16.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 Steel

Mesh Opening : 3" x 0.5" x 8gague wire,12.70mm x 76.20mm

Diameter : 4.00mm ,3.00mm

Size : Available Customized

Color : All RAL color card

Treatment : Hot Dipped Galvanized Or Powder Coated

V Beams : Available

Sample : Free but pay freight cost

Accessoires : Clamp,Post ,Y arm for barb wire

Feature : Anti ,Resistant ,Cut ,Climb

Main Market : Africa ,Oceania ,Aisa

Salt Spray Test : Pass

Contact Now

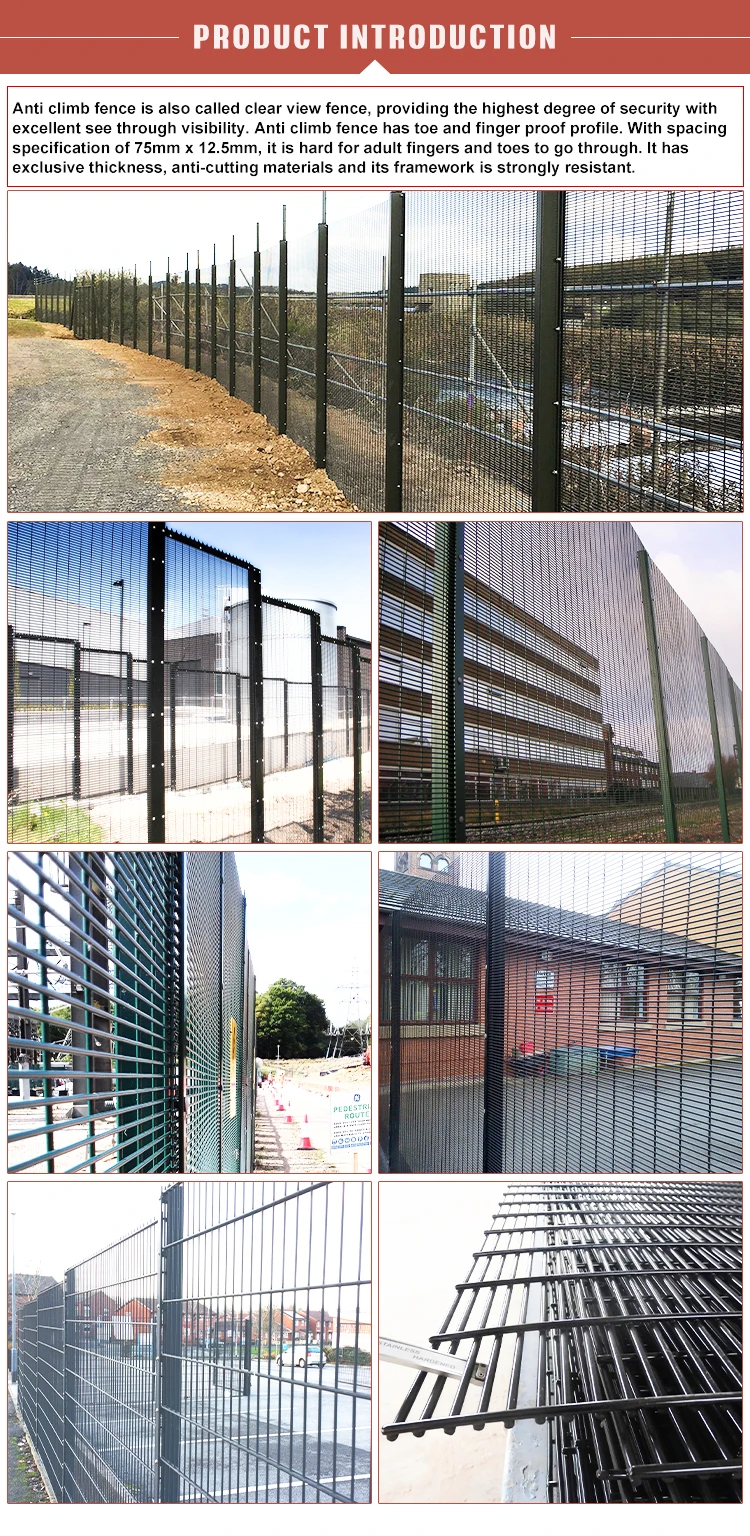

358 Mesh provides the highest degree of physical perimeter protection. It is ideal for sensitive areas requiring a maximum degree of security. Three hundred fifty-eight mesh security fences are popular for prisons and nuclear establishments, computer centers, research laboratories, warehouses, schools, and retail areas.358 welded mesh fencing is used for high-security fencing, requesting double horizontal wire power-coating. It is more robust due to the small mesh opening.

358 High-Security Mesh fencing is made from a strong welded mesh panel with a small mesh opening. It is complicated to penetrate and difficult to attack using conventional hand tools. Has the features of anti-climbing and anti-cutting. The fence name 358 comes from its panel mesh opening 3" × 0.5" × 8 gauge - approximate to 76.2 mm × 12.7 mm × 4 mm mesh opening.

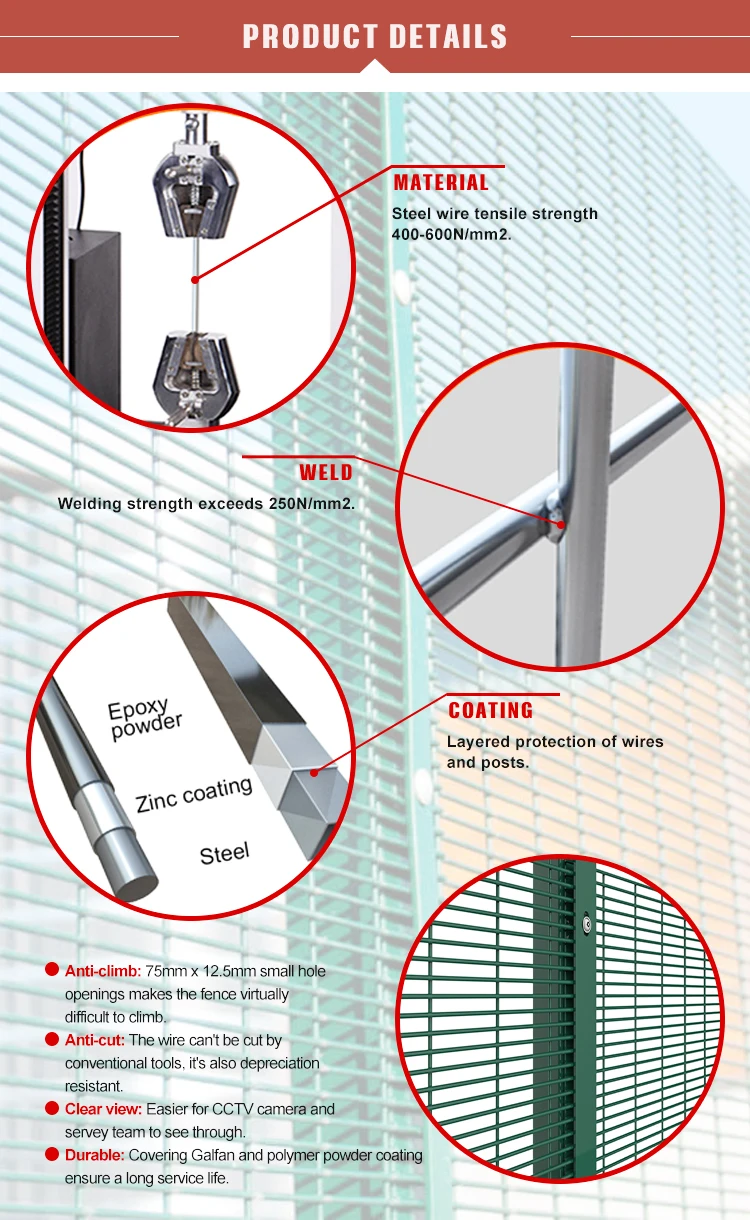

358 Mesh Fence Features

Anti-climbing: more small openings, no toe or finger holds.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
High strength welded at each intersection.
Durable: covering Galfan and polymer powder coating ensure long service life.
Mesh fencing is specially configured to provide maximum visibility, primarily used for emergency and electronic detection systems.

358 Mesh Panel size

Mesh pattern: 76.2 mm (3") × 12.7 mm (0.5") resistance welded well at each intersection.
Wire diameter: 4 mm horizontal Wire and vertical Wire.
Weld strength: range 540–690 N/m2.
Surface treatment: 358 mesh fence panels made from Galvan Wire, PVC powder coating (Min. 100 microns), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: Green RAL 6005 or Black RAL 9005.
358 mesh Installation: Overlapped 75 mm minimum at each post for securing slotted clamp bars and M8 diameter bolts.

Specification

Fence height (m)	Panel size (Height × Width) (mm)	Fence Post (Height × Size × Thick) (mm)	Clamp Bar(mm) (Height × Width × Thick) (mm)	Interior or corner Clamp No. (pcs)
2.0	2007 × 2515	2700 × 60 × 60 × 2.5	2007 × 60 × 5.00	7 or 14
2.4	2400 × 2515	3100 × 60 × 60 × 2.5	2400 × 60 × 5.00	9 or 18
3.0	2997 × 2515	3800 × 80 × 80 × 2.5	2997 × 80 × 6.00	11 or 22
3.3	3302 × 2515	4200 × 80 × 80 × 2.5	3302 × 80 × 6.00	12 or 24
3.6	3607 × 2515	4500 × 100 × 100 × 3.0	3607 × 100 × 7.00	13 or 26
4.2	4204 × 2515	5200 × 100 × 100 × 4.0	4204 × 100 × 8.00	15 or 30
4.5	4496 × 2515	5500 × 100 × 100 × 5.0	4496 × 100 × 8.00	16 or 32
5.2m 358 mesh	5207 × 2515	6200 × 120 × 120 × 5.0	5207 × 100 × 8.00	18 or 36

Feature

358 Anti-climbing Mesh: more small opening, no toe or finger extend into.
Anti-cut: robust wire and welded joints make cutting very difficult by bolt cutters and wire cutters.
Durable: hot-dipped galvanized, Galfan and polymer powder coating ensures a long service life.
358 Anti-climbing mesh - Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays excellent protection against climbing.
Anti-shear - the large wire diameter, the mesh is dense, making the Wire cut useless.
The beautiful appearance - the mesh surface is flat and has a higher perspective.

Applications 358 mesh

358 high-Security Prison Mesh fencing Application
Bridge anti-climb guarding & guard safety screening
Psychiatric hospital security fencing
Prison security fencing
Factory machine guards Walkway security fencing
Airport security fencing
Shipping Port Security fencing
Electrical sub-station fencing
The gas pipelines security fence
358 mesh fence for High security living area and private field fence.

358 mesh fence advantages:

The aperture is 72.2mm horizontal x 8.7mm vertical and makes 358 mesh extremely difficult to penetrate using conventional hand tools, thus providing a high delay factor. Despite the high degree of security, the visual impact of a 358 mesh fence on the environment remains very discreet. It is specifically configured to give maximum visibility.

Application

as an anti-climb & anti-cut barrier, a 358 welded wire extra high-security fence is designed with maximum security in mind. It is ideally suitable for electronic alarm and detection systems, fencing in prisons, military sites, airports, industrial and commercial properties, warehouses, power plants, offshore petrochemical facilities, seaport Perimeter, laboratories, secure hospitals, schools, parks, leisure and recreational areas. 358 fence will give them a long-lasting and secure perimeter protection with an attractive appearance. Generally, 3.60 m height fence is used in schools, parks, leisure and recreational areas; 5.20 m height fence is widely used in prison and military establishments.
